Equipment advantages:
Efficient use of space: Integrated unwinding, straightening, and feeding functions; saves workshop space, with an installation length of only 5 meters.
High production efficiency: High degree of automation, synchronized operation with the press, ensures process continuity and improves production capacity.
High processing precision: Low tolerance, feed positioning accuracy of 0.02 mm, flatness of 0.05 mm, ensuring product quality.
Simple and intuitive operation: Touch screen with zone interface, facilitates clear and easy parameter adjustment.
Wide range of applications: Hydraulic expansion compatible with various types of materials.
Reduced labor costs: Automated operation reduces the need for manual intervention.

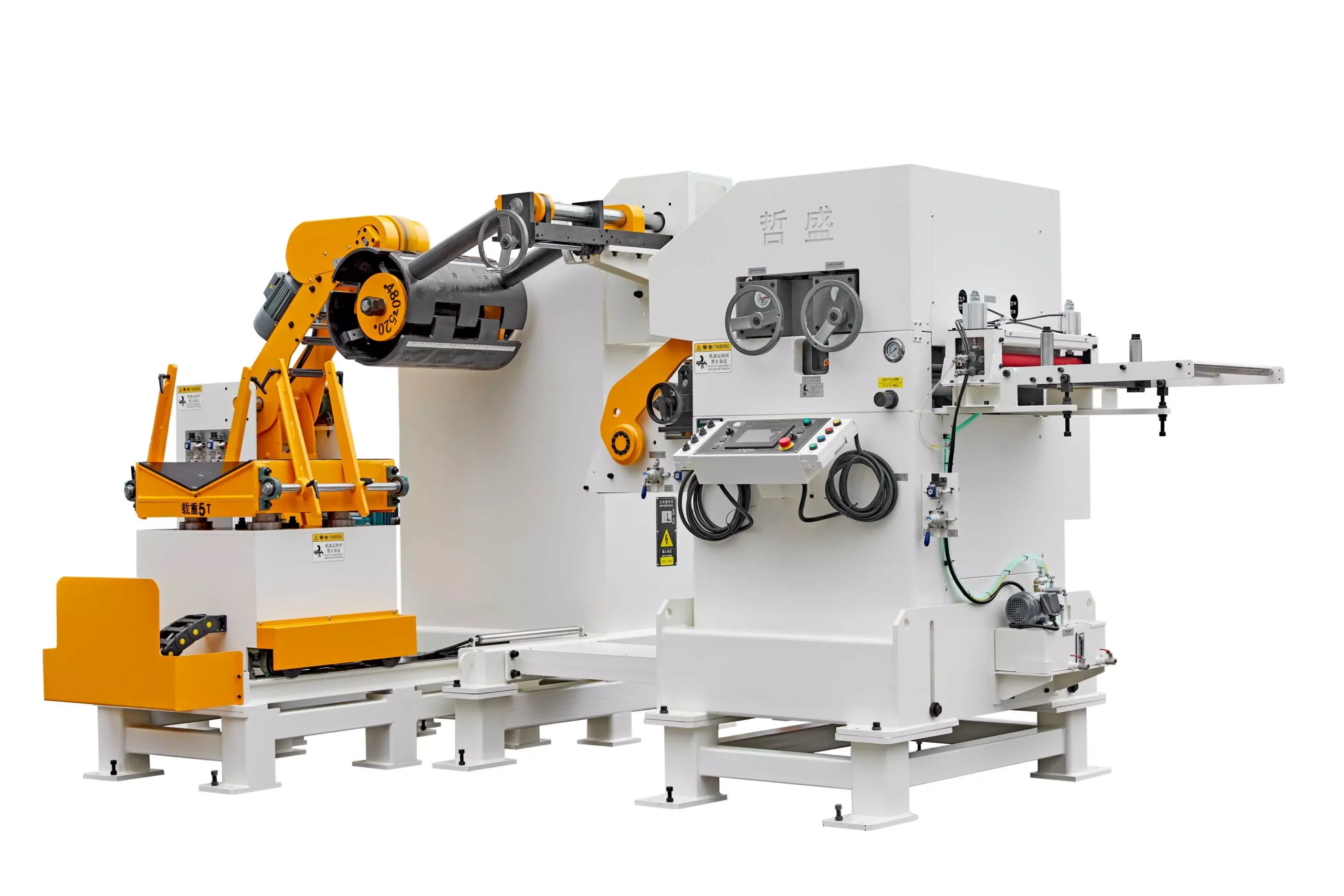

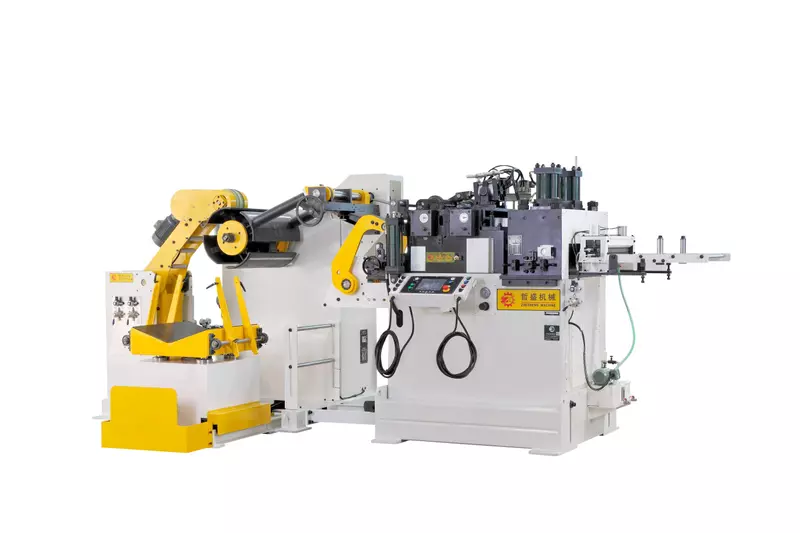

Three-in-one Feeder NCLF-600
Technical parameters:
Material width: 100–600 mm
Material thickness: 0.6–6.0 mm
Inner roll diameter: 480–520 mm
Outer roll diameter: 1400 mm
Material weight: 5000 kg
Technical parameters:
Material width: 100–600 mm
Material thickness: 0.6–6.0 mm
Inner roll diameter: 480–520 mm
Outer roll diameter: 1400 mm
Material weight: 5000 kg
PRODUCT:
Three-in-one Feeder NCLF-600
